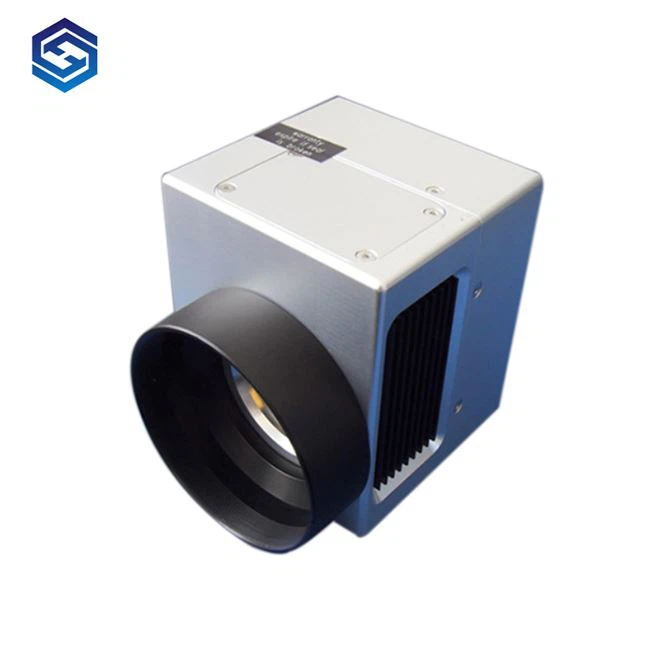

10mm Galvanometer Laser Parts Galvo Scan Head
10mm Galvanometer(Laser Part) Product details Technical Parameters Driver Board Specification of scan galvo laser Lens cleaning.
Description
10mm Galvanometer(Laser Part)
Product details

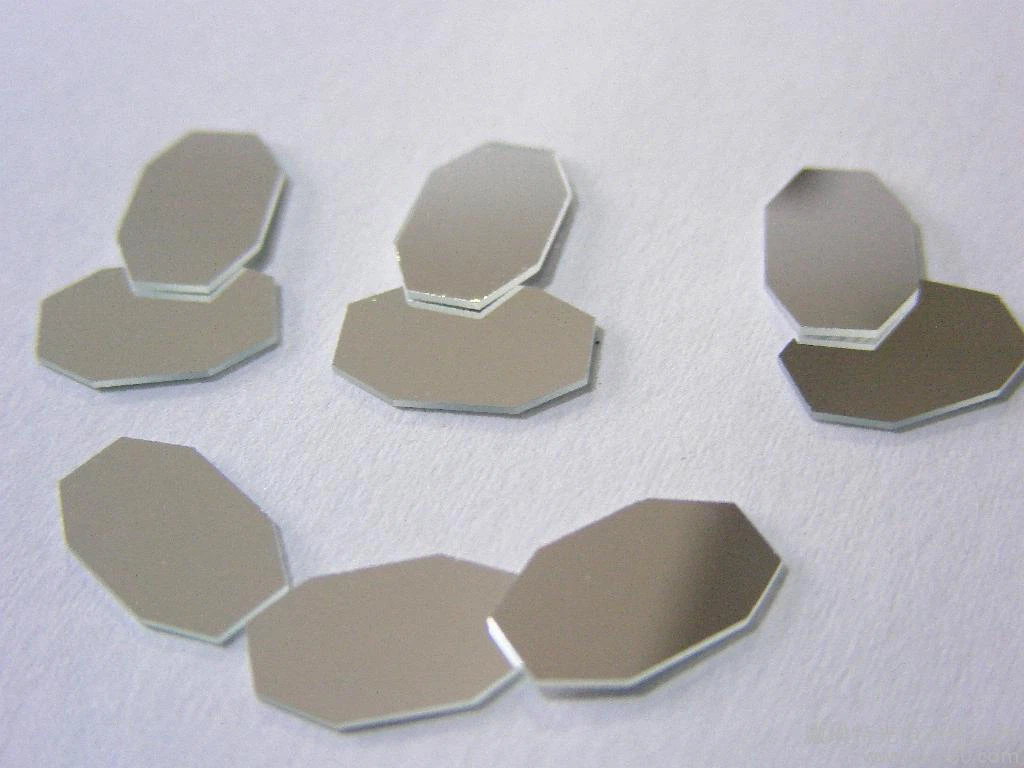

A Galvo Scan Head (or called laser marking head, laser scanner) consists of two scan mirrors, two galvanometers (or called galvo-scanner motor) & drive cards, an X-Y mount, a scanning lens, an interface card (or called D/A card), a set of marking software and a DC power supply. Two types of scanning optics for CO2 and Fiber or Nd:YAG lasers are available.
|
| 1. The most cost-effective high speed scan galvo laser. |
| 2. The input aperture of scan galvo laser is 10 mm. |
| 3. Scan galvo laser has a superior performance of zero drift, higher speed, smaller size, and stronger anti-interference. |
Technical Parameters
| Aperture | 10mm |
| Typical Scan Angle | ±0.35rad |
| Nonlinearity | 3.5mrad |
| Tracking error | 0.16ms |
| Repeatability | < 20urad |
| Gain drift | < 50ppm/K |
| Zero drift | < 15urad/K |
| Long-term drift over 8 h | < 30mrad |
| Marking speed | 2m/s |
| Positioning speed | 10m/s |
| Power Requirements | ±15VDC, max.3A each |
| Analog | ±5V |
| Reflection wavelength | 10600/1064/532/355nm |
| Operating temperature | 25℃±10℃ |
Driver Board Specification of scan galvo laser
| Input Voltage | ±15V/DC |
| Interface Signals Digital | XY2-100 |
| Position Signal Input Resistance | 1K±1% Ω |
| Position Signal Input Scale Factor | 0.5V/° |
| Position Signal Output Scale Factor | 0.5V/° |
| Working Temperature | 0-45°Motor |
| Packafe Diameter(cm) | 28*28*20 |
Lens cleaning
