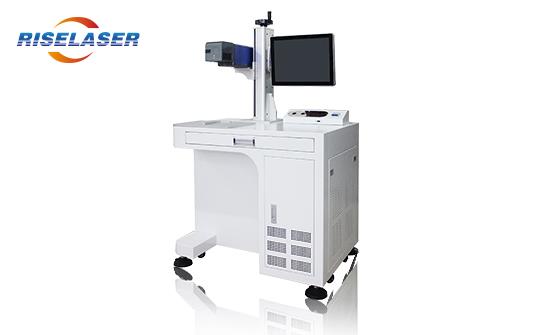

Compact Industrial Fiber Laser Marking Machine
Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free.
Description
Compact Industrial Fiber Laser Marking Machine
1.Product Introduction
Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free. Long life Working. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed without distortion.
2.Product Parameter (Specification)
Item Name | Technical Parameter |
Model | Fiber laser marking machine |
Laser Power | 20W/30W/50W |
Laser Wavelength | 1064nm |
Laser Type | Raycus/ Max /Ipg Fiber Laser Source |
Beam Diameter | 6-7Mm |
Repeat Frequency | 30khz-100k |
Pulse Width | 80-140 Ns |
Energy Pulse | 0.8-1.0 Mj |
Marking Area | 110×110mm/150×150mm |
Rated Power Consumption | 800w--1200w |
Operating Voltage | 110v- 240v/50-60 Hz/15a |
Cooling | Air Cooling |
Packing Size | 1025*720*1130mm (L*W*H) |
Gross Weight | 140 Kg |
3.Product Features
1). Long Lifetime:can reach 100,000 hours.
2). Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
3). High Precision: Re-position precision is 0.002mm
4). High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
5). High Reliability: MTBF>100,000 hours
6). Energy Saving: The efficiency of optic-electrical converting is up to 70%
7). Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path.

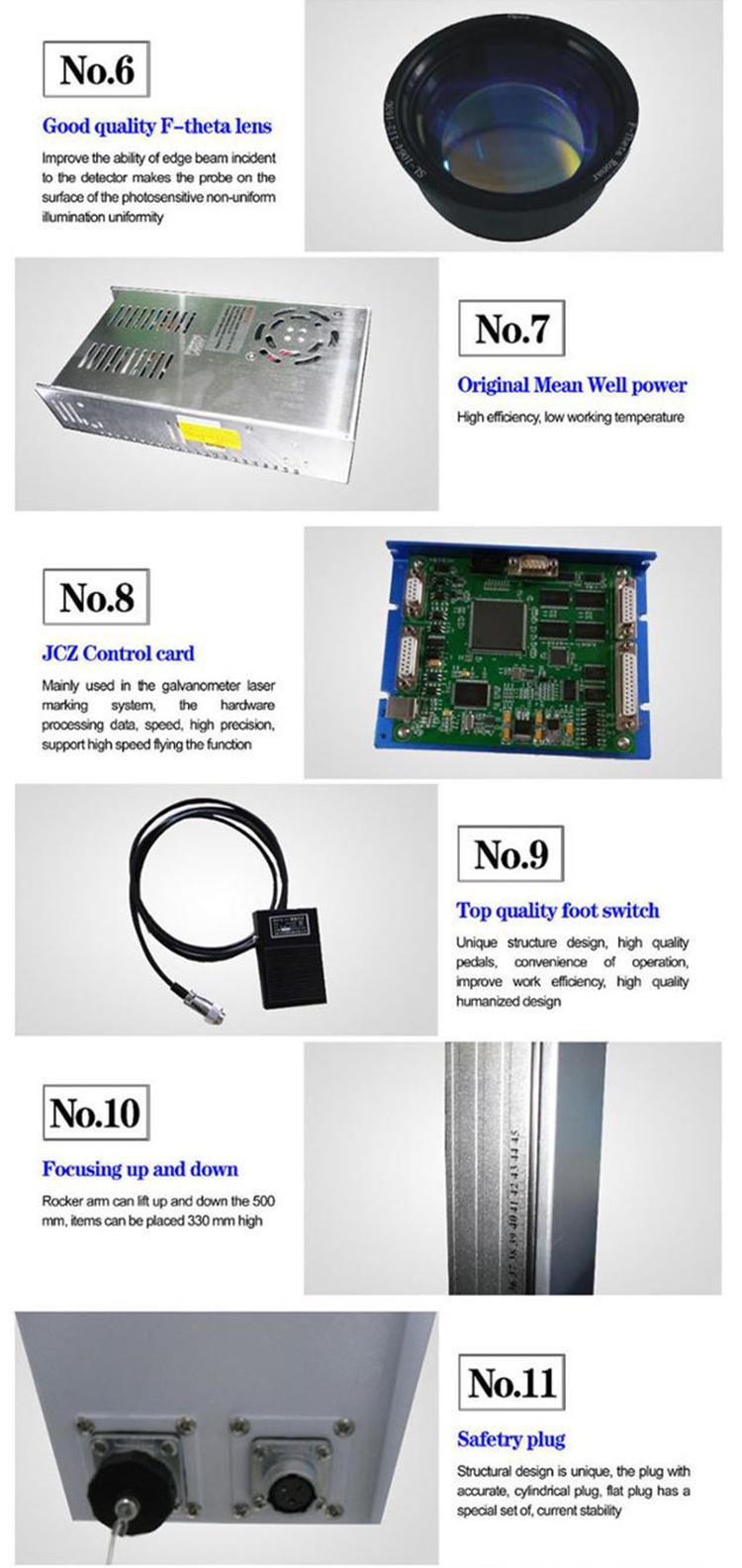

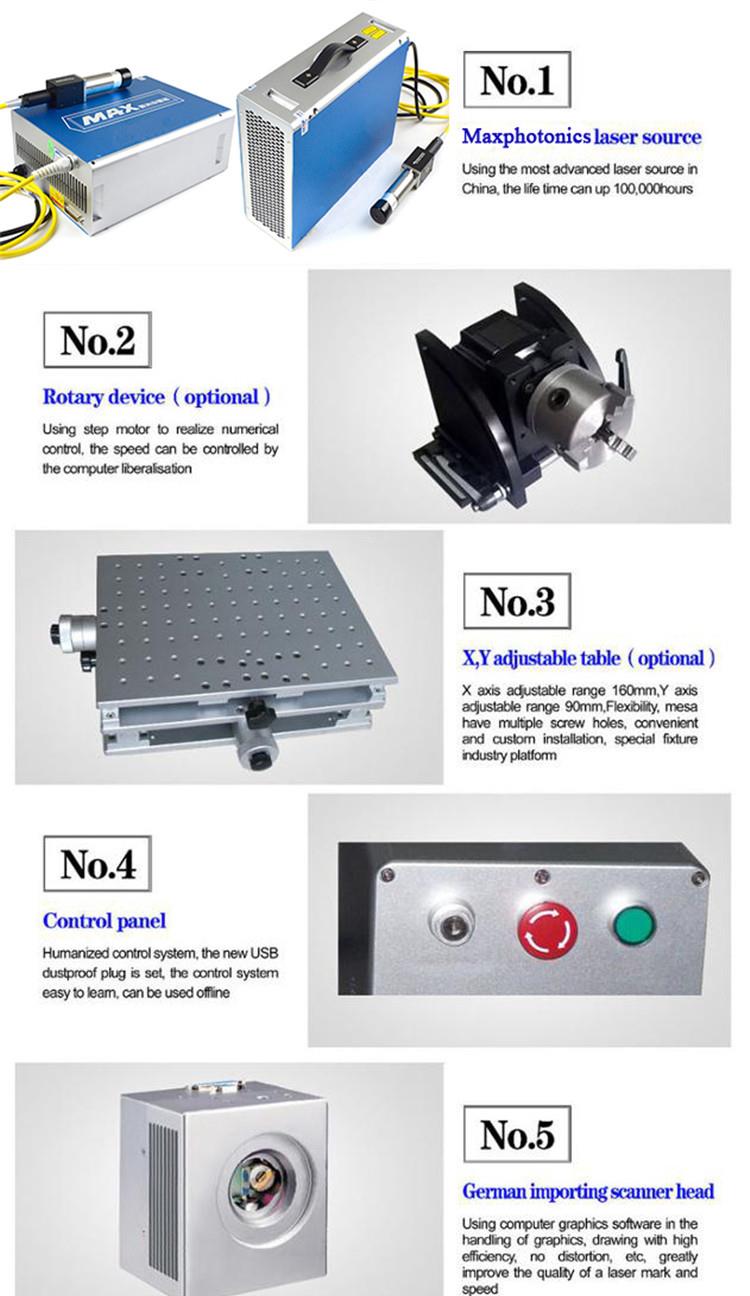

4.Production Details
5.Certifications
