Laser Engraving Machine And Laser Etching Stainless Steel
Laser marking machines use laser beams to mark permanent surfaces of various substances.The effect of the marking is to reveal the deep material through the evaporation of the surface material
Description
30W Laser Engraving Machine And Laser Etching Stainless Steel
Product Introduction
Fiber laser marking engraving machine is suitable for marking on various metals and some non-metals. It can mark time, date, text, serial number and part number, company logo, icon, symbol, barcode or 2D code, all flat, painted, powder-coated, anodized or electroplated metal surface matrix and vector fonts are flat, Surface or cylinder. The fiber laser can also deep engrave and cut metals such as gold, silver, titanium, steel, and brass.
2.5D and 3D fiber lasers are suitable for joining metal coins, jewelry, molds, stamps, etc. 3D fiber lasers also have the advantage of marking curved surfaces.
The split hand-held marking machine can not only ensure a larger working area, but also realize mobile marking. The circular bracket is convenient to fix the scanning galvanometer during hand-held marking to ensure accurate alignment.
Product Parameter
Laser Power | 20W, 30W, 50W, 100W(Optional) |
Frequency | 20khz-80khz |
Marking Area | 110*110mm(70-300mm Optional) |
Marking Color | Black, White, Gray(According To Material) |
Output Power Of Laser | 10%~100% Continuously To Be Adjusted |
Cooling Mode | Air Cooling |
Communication Interface | Usb |
Minimal Character | 0.01mm |
Marking Depth | 0-2mm(According To Material) |
Repeated Accuracy | 0.0025mm |
Working Condition | Humidity 5%-75%, Free Of Condensed Water |
Marking Format | Graphics, Text, Bar Codes, Two-Dimensional Code Etc. |
Scanning Head | High Speed Optical Scanning Galvanometer |
Focus Assistance | Double Red Pointer Combined In Head |
Warranty | 24 Months For The Laser Source, 12 Month For The Machine |
Optional | Rotary Device, Moving Table, Other Customized Automation |
Product Application
Jewelry & Acessories : Rings, Pendant, Bracelet,Necklace,Sunglasses,Watches etc.
Electronic Components: Phone,IPAD,Resistors,Capacitors,Chips,Printed Circuit Boards, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Electronics : Iphone, IPAD, Ipod, Keyboard and more standard parts.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings, Gears, Shafts,Bearings,Clutch,Lights
Handicrafts: Zipper, Key Holder, Souvenir,etc.
Production Details

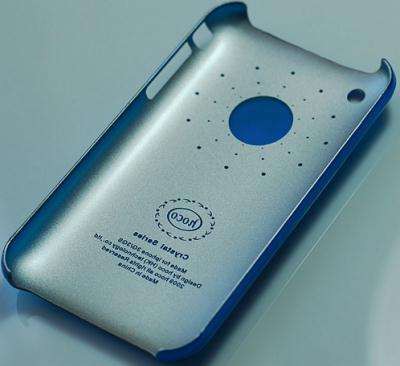

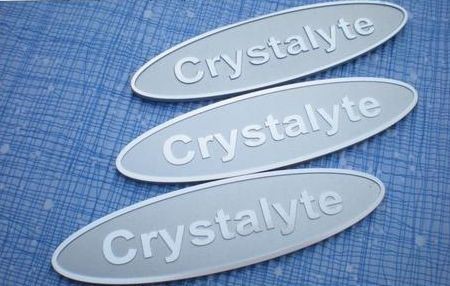

Samples
FAQ
How about the delivery time, packaging and delivery time?
1. For standard products, within 3-7 working days after receipt of payment.
2. The packaging is divided into three layers: waterproof thick plastic bag, shockproof foam, strong wooden box for export.
3. DHL Fedex TNT delivery, delivery to the airport or by sea.
How about warranty and after-sales service?
1. The warranty period is generally 1 year.
2. Provide technical support via email, phone, WeChat, whatsapp or remotely.
3. Free operation training for life.
How to install and use this laser marking machine?
1. The machine has been installed before transportation. We have a very detailed English manual of laser system and laser marking software, almost all customers can easily learn it by themselves. If you have any questions, we will also provide you with guidance.
Hot Tags: Laser Engraving Machine And Laser Etching Stainless Steel, China, manufacturers, customized, wholesale, price, hot sale
