Portable 5W UV Laser Marking Machine And Engraving Machine
5W Separate UV Laser Marking and Engraving Machine Product Features 1. Separate and portable, needs small space 2. Low power consumption 3. High power water chiller 4. Double red light precise focus Product Parameters Advantages 1. Cold processing marking: no thermal effect and material burning...
Description

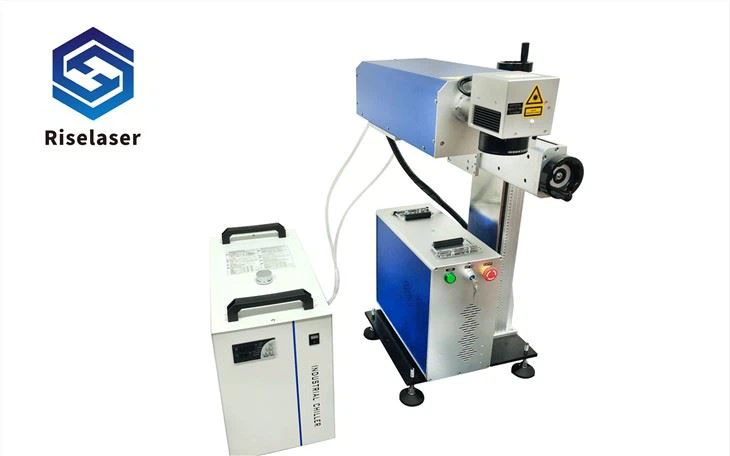

Portable 5W UV Laser Marking Machine And Engraving Machine
Product Features
1. Separate and portable, needs small space
2. Low power consumption
3. High power water chiller
4. Double red light precise focus
Product Parameters
RL-UV3 | RL-UV5 | |
Wavelength | 355nm | 355nm |
Output power | >3W@30KHz | >5W@40KHz |
Maximum pulse energy | 0.1mJ@30KHz | 0.12mJ@40KHz |
Pulse Repetition Frequency | 1-150KHz | 1-150KHz |
Pulse duration | <15ns@30KHz | <18ns@40KHz |
Average power stability | <3% | <3% |
Spatial mode | TEM00 (M²< 1.5) | TEM00 (M²< 1.5) |
Polarization ratio | >100:1 Horizontal | >100:1 Horizontal |
1/e2 beam diameter at output | 0.7mm | 0.8mm |
Beam circularity | >90% | >90% |
Advantages
1. Cold processing marking: no thermal effect and material burning problem.
2. Good beam quality.
3. Strong resistance to external temperature interference.
4. Stable performance and fast marking speed.
Applications
Laser Marking, Micro hole machining, Ceramic cutting,Thin film etching.
Certifications
Packaging
FAQ
Q1: How can I get the most suitable machine for me?
You can tell us through pictures or videos what items you want to handle and detailed requirements so that we can provide you with the best solution.
Q2: What should I do if there is a problem with the machine in use?
If the machine has any problems under "normal use", we can send you free parts during the warranty period.
Q3: What guarantee is there if the machine fails?
The machine has a one-year warranty. If there is a malfunction, usually, based on customer feedback, our technicians will find out the problem. If the problem is caused by a quality defect, other parts except wearing parts will be replaced free of charge.
Q4: How long is the delivery time?
For standard machines, it will be 7-10 days; for non-standard customized machines, it will be 15 to 30 days.
Hot Tags: Portable 5W UV Laser Marking Machine And Engraving Machine, China, manufacturers, customized, wholesale, price, hot sale
