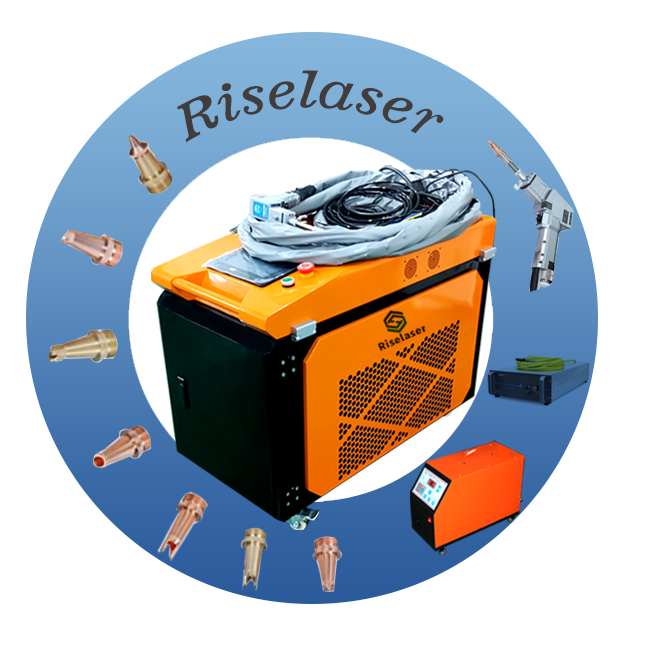

1500w Fiber Laser Welding Machine For Metal

Reliable performance.
High welding speed with beautiful weld seam.
Widely applied for industry.

Description

Product profile

The MINI Fiber Laser Welding Machine is a cutting-edge 3-in-1 laser system that integrates welding, cleaning and cutting functions. This all-in-one machine is distinguished by its handheld laser gun, designed for precision metal cutting and welding. Additionally, it excels in the removal of rust, paint, resin, coatings, oil, and stains.It is meticulously crafted for the purpose of welding stainless steel, iron, galvanized materials, and aluminum sheets. The machine adopts integrated design, compact structure, suitable for various working environments.

The compact body and hand-held welding head design make the welding process more flexible.

With automatic laser welding function, welding speed is fast.

The micro fiber laser welding machine uses a simple control panel, easy to learn and simple to operate. Beginners do not need a certificate to operate.

The finished weld is smooth and hardly requires any further polishing process.

product accessories

The accessories of MINI fiber laser welding machine include wire feeder, laser source, laser head, water cooling, full set of nozzles, control panel, protective lenses, goggles

contrast

Laser Welding Traditional way

Smooth and beautiful welds

Save time and cost, improve efficiency

Requires secondary processing

Secondary processing required

Small heat affected area

No blackness, no deformation, solid welding

High heat capacity

Very easy to deform

Product parameter

Laser System	RL-F1000	RL-F1500
Laser Type	1080nm Fiber Laser
Laser Power	1000W	1500W
Cooling System	Water Cooling
Way of working	Continuous / Modulation
Laser source	Maxphotonics
Speed range of welder	0~120 mm/s
Focal Spot Diameter	0.5mm
Ambient temperature range	15~35 ℃
Environmental humidity range	<70% without condensation
Welding thickness	0.5-3mm
Welding gap requirements	≤1.2mm
Operating voltage	AC220V
Packing dimensions	1085897cm
Packing Weight	163kg
Fiber length	Standard 10m, the longest customized length15m

Product video

Product size

Products application

3 in 1 fiber laser handheld welding machine is suitable for welding various metal materials. It can realize stainless steel mirror characters, stainless steel plating characters, stainless steel gold foil characters, precision stainless steel characters, precision aluminum characters, iron paint characters, etc. In addition, laser welding machines can also be used in the lighting and mold industry, communication equipment, medical, electronics and small welding processing industries.

Product Packaging

Mini fiber laser welding machine export package as below.

1. Exterior: Plywood Package

2. Center: Foam

3. Interior: Waterproof Film

FAQ

Q:Does welding brass bounce high?

A: No. The high-reflection material is mainly red copper, and the reflection of aluminum alloy is not as high as that of red copper. No matter which company's laser products are, they can't weld very well. The parameters for welding brass are roughly the same as for welding stainless steel and carbon steel. The zinc content of brass is relatively high, and the zinc vapor will volatilize, so the welding quality will be poorer.

Q:What is the welding penetration related to?

A: The welding penetration depth is related to the core diameter of the laser. If the welding depth is required, a laser source with a smaller core diameter can be selected.

Q:How does the welding workpiece not deform?

A:Fast enough welding speed and good fixtures are needed to ensure that the workpiece is clamped firmly, and then it is removed after a period of welding. If you think the workpiece will be deformed, you can reverse the deformation of the workpiece first, and cancel the positive and negative phases.

Q:Will dust affect the welding wire melting?

A: No effect, but dust may enter the molten pool, and if slag is included, the forming will be poor, and the welding quality and strength will be poor.
