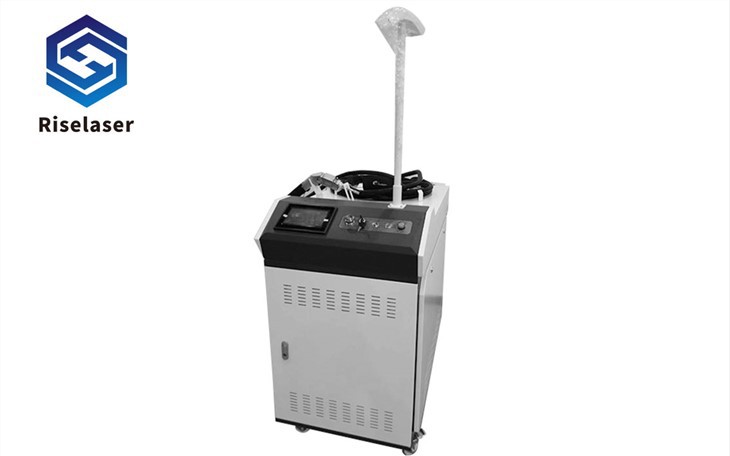

1500W Handheld Laser Welding Machine
Simple operation.
Beautiful weld seam.
Fast welding speed.
Easy Maintenance.
Description
1500W Handheld Laser Welding Machine System With Precise Welding
Product Description
Riaelaser's handheld laser welding machine with 1000W/1500W/2000W, compared with traditional welding equipment,more safer,more efficient, energy-saving and environmentally friendly.
Product Welding Thickness
1. 1000W handheld laser welding machine can weld 0.5-3mm steel.
2. 1500W handheld laser welding machine can weld 0.5-4mm steel.
3. The 2000W handheld laser welding machine can weld 0.5-5mm steel and 0.5-4mm aluminum.
The above data is based on a triangular spot. Due to the difference of plates and labor, please refer to actual welding.
Product Specification
Riselaser 1500W Handheld Metal Fiber Laser Welding Equipment | RL-FH1500 |
Laser device | 1000W/1500W/2000W |
Laser wave length | 1080nm |
Welding speed range | 0-120mm/s |
Welding gap | ≤1/5 of the thickness of sheet metal |
Fiber length | Standard 15m,maximum 30m |
Min line width | ≤0.15mm |
Cooling System | Water Cooling |
Continous working time | 24 Hours |
Environment temperature | 0-35°C |
Power requirements | 380V/3 Phases /50Hz or 60Hz( 220V/ Single Phase/50 or 60Hz) |
Machine Video
Our products also can be selected according to the customer's work needs.
If you want more details, please feel free to contact us please. Riselaser 24-hour online service.
Samples Show
Riselaser Service Features
1. High Quality products with competitive price.
2. 7*24 Hours online after - sales service.
3. Delivery on time and excellent after-sales service.
4. Lifetime technical support for you.
5. Every product will be tested before the delivery.
Hot Tags: Handheld Metal Fiber Laser Welding, 1500W Handheld Metal Fiber Laser Welding,laser welding machine system
Technical Parameters
Model | RL-FH1500 |
Laser Wavelength | 1060nm |
Laser Maximum Power | 1500W |
Total Power Consumption | 8KW |
Min line width | ≤0.15mm |
Cooling System | Water Cooling |
Continous working time | 24 Hours |
Environment temperature | 0-35°C |
Power requirements | 380V/3 Phases /50Hz or 60Hz( 220V/ Single Phase/50 or 60Hz) |
