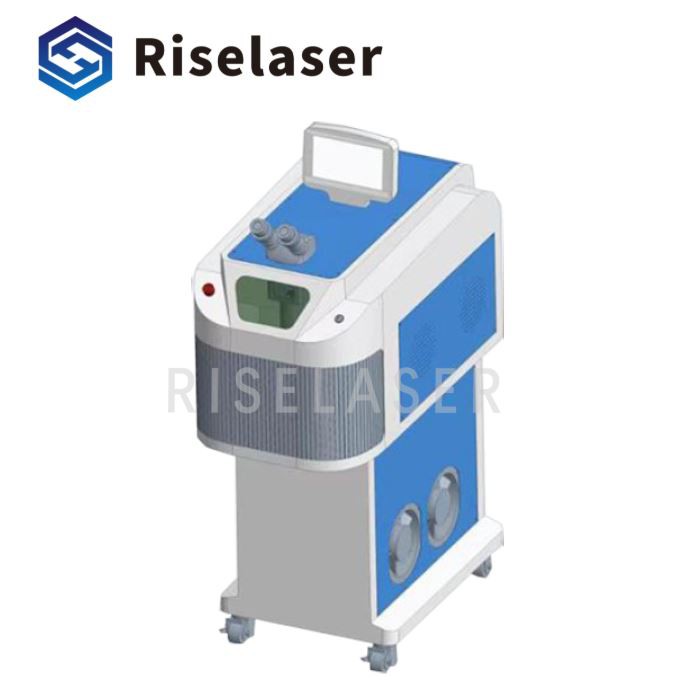

Jewelry Laser Welding Machine With Curtain
High precision.
Fast speed.
Long service life.
Easy Operation.
Easy Maintenance.
Extensive application.
Description
Product Information
1. Complete machine ergonomic design further fits jewelry industry of which the products are meticulous and artistic and property is stable and it also meets the needs of long time continuous operation.
2. The head cushion and bracket arm cushion are added especially so that long time operation is more comfortable.
3. Large inner space is convenient for setting out of tools and fixtures.
4. Electric focusing device is equipped in working region and laser parameters are applied to adjusting lights for renewal of dust screen,clearing of working region and recovery of welding dust.
5.Observation of welding positions is clearer by using adjustable high brightness of LED ring astral lamp and German brand Microscope.
Product Application
Widely used in aviation,aerospace,sporting goods,jewelry,gold head,medical,equipment,aluminum,alloy denture,instrumentation,electronic,mechanical processing,automobile and other industries,especislly for gold and silver jewelry fill holes,spot weld lines,Mosaic forces and claw foot position welding.
Product Parameter
| Product name | Jewelry laser welding machine |
| Laser source | Nd: YAG 1064nm |
| Max laser power | 230W |
| Frequency range | 1~50Hz |
| Pulse width range | 1~20ms |
| Spot size range | -3mm~3mm |
| Max energy | 90 Joule |
| Aiming positioning | CCD, 10X microscope |
| Positioning accuracy | +/-0.02mm |
| Input voltage | 220V 50/60Hz |
| Machine size | 700*350*930mm |
Product Video Describe
Sample Display
The welding of all kinds of metal materials such as Gold Silver Platinum ,Copper Titanium Stainless steel etc. and jewelry such as ring ,earring bracelet ,necklace ,tie bar cuff-link ,as well as metal decorations.
FAQ
1. What materials can be welded by laser welding machine?
Our laser welding machine can weld on jewelry,ring,and other materials. If you are not sure
whether your material can be welded, please contact us and we will test it for you for free.
2. How to choose a suitable machine for me?
We will help you choose the suitable machine and share you our best solution;please share us what kind of material you want to weld on.
3. What should I do if there is a problem with the machine？
We provide a full one-year machine warranty.Any problems happened under
warranty, components will be provided for replacement free of charge.If over the warranty, we still provide excellent service.
4. Does your factory have the design & development capacities, we need customized products?
Yes. Our designer has 15 years of experience in laser industrial. We can make customized products especially for you; Please kindly contact us.
Hot Tags: jewelry laser welding machine with curtain, China, manufacturers, customized, wholesale, price, hot sale
