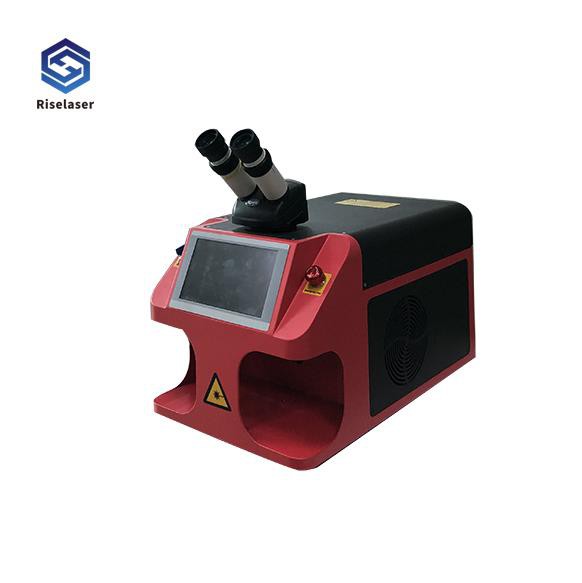

Mini Portable 60W Jewelry Laser Welding Machine
Jewelry laser welding machine adopts ergonomic design, suitable for jewellery laser welding industry, professional appearance design, equipped with special microscope observation system of cross cursor, with high-speed electronic filter device, which can protect operators' eyes.
Description
Mini Portable 60W Jewelry Laser Welding Machine
Product Description
Jewelry laser welding machine adopts ergonomic design, suitable for jewellery laser welding industry, professional appearance design, equipped with special microscope observation system of cross cursor, with high-speed electronic filter device, which can protect operators' eyes. The high power beam expanding system can obtain more fine light spots and meet the needs of fine laser spot welding; the whole machine is small, convenient to carry and transport, and the operation process is simple. Good welding effect, stable and reliable equipment, low failure rate.
Product Parameters
Model | RL-Y60 | RL-Y100 | RL-Y200 |
Laser Power | 60W | 100W | 200W |
Laser Type | YAG Laser | ||
Wavelength | 1064nm | ||
Pulse Frequency | <50Hz | ||
Max.Pulse Energy | 40J | 60J | 80J |
Gross Power | ≤4KW | ≤6KW | ≤9KW |
Voltage | 220V±10%/50HZ/30A or 380V±10%/50HZ/40A | ||
Pulse Width | 0.1-10ms | ||
Adjustable Beam Size | 0.2-2mm | ||
Frequency | 0.5-20Hz | ||
Cooling Mode | Water Cooling | ||
Warranty | 1 Year | ||
Positioning | Microscope | ||
Controller System | Micro Touch Screen |
Main Function
1. One-button operation for automatic pumping, PWM continuously variable Fans, Touch screen integrated CCD display.
2. ouch screen integrated with CCD display, convenient to adjust spot size on screen, clear to see the welding spot location.
3. More stable Light path, locating pins fixed into both end of light path, no need to re-adjust the path even a new lamp for replacement.
4. Water tank, automatic water pumping by one key, it will be alarmed with low temperature or high temperature.
5. Fans, noise level within 40-50 Db(A), Intelligent control, high temperature with fast running, low temperature with slow running or stopping.
Product Application
1. Suitable for laser welding of gold and silver jewelry, laser welding of stainless steel jewelry, manual laser welding of fine metal parts.
2. Jewelry, dentures, glasses and laboratories, dedicated spot welders.
Certification
Shipping
Riselaser Service Features
1) Free Sample Marking
2) Strict Quality Control of Production
3) 5-7 Days Quick Delivery
4) 1 Year Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
