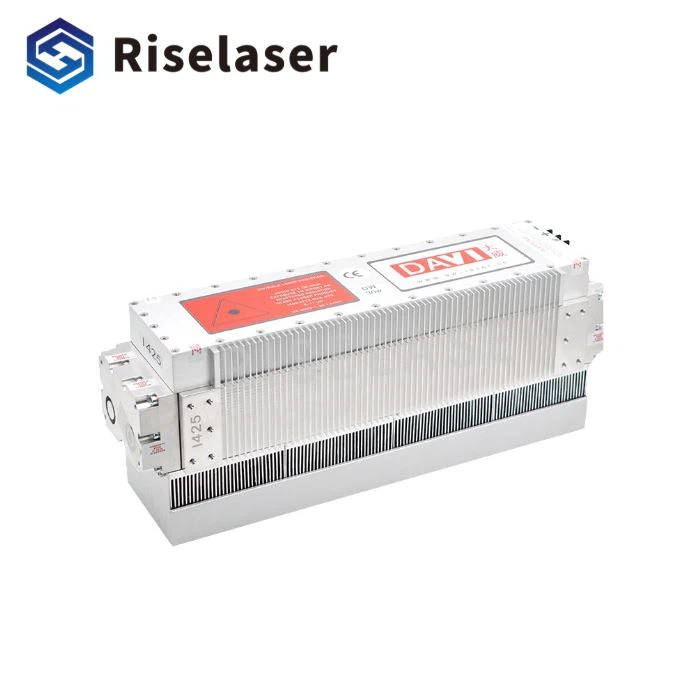

CO2 Metal Tube Laser
All metal body and very firm.
Small size easy to carry.
3-5 years Long lifetime, Stable machine and mode quality.
Description
CO2 Metal Tube Laser
Products Descriptions
The CO2 metal tube laser is a gas laser with CO2 gas as the working material. When a high voltage (usually DC or low-frequency AC) is applied to the electrode, a glow discharge is generated in the discharge tube, and there is a laser output at one end of the germanium mirror, and its wavelength is Mid-infrared band near 10.6 microns.
CO2 Metal Tube Laser Specifications
Cooling Way | Air Cooling/ Water Cooling |
Central Wavelength | 10.6µm |
Dimension L*W*H | 357*92.5*142mm |
Input Voltage | 48VDC 12A |
Max Heat Load | ＜430W |
Maximum hull temperature | ＜60℃(140℉) |
Working environment temperature | 5℃~40℃(41℉~104℉) |
Working Height | ＜2000m(6,500ft.) |
Humidity | No Condensation |
Working Frequency & Duty Cycle | 0~25KHZ, 0~100%DC |
Beam Diameter | 1.8±0.2mm |
Continuous rated output power | 30W |
Products Applicable Industries
1.CO2 metal tube laser for Medical treatment.
2.For CO2 Laser Marking/Engraving Machine.
3.For CO2 Laser Cutting Machine.
Exhibition
CO2 Metal Tube Laser Packaging and Shipping
