Fiber Optic Laser Machine
Low costs and maintainance free.
Excellent power stability.
Outstanding system reliability.
Simple control interface.
Description

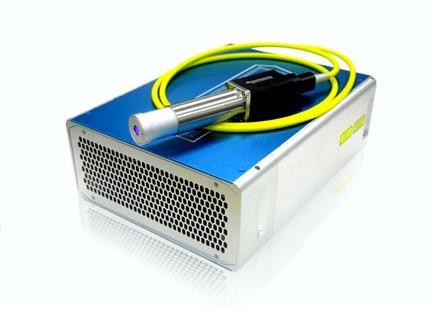

Fiber Optic Laser Machine
Product Features
1. Fiber optic laser machine with high electro-optical conversion efficiency.
2. Resistant to high reaction.
3. Efficient sheet cutting.
4. Output fiber length can be customized.
5. Maintenance-free operation.
6. Wide modulation frequency range.
Product Size
Technical Specification
| Optical Character | |
| Power | 6000W |
Wavelength | 1080±10 nm |
Output fiber core diameter | 100μm |
Cable Length | 20m or Customized |
Beam Delivery | QBH or Customized |
Guide Beam | Red |
Operation Mode | Continuous or Modulated |
Polarization | Random |
Power Stability（25℃） | ＜±1.5% (2h) |
Power Adjustment Scope | 10%-100% |
Max Modulation Frequency | 5kHz |
Overall size and weights | |
Weights | ＜150Kg |
Outline Feature | 600mm*800mm*630mm |
Electronic Character | |
Voltage | Three Phase ,380±20V, AC, PE, 50/60Hz |
Power Consumption | 18 kW |
Control Interface | RS232/AD |
Water Cooling Parameters | |
Minimum Water Cooling Capacity | 13 kW |
Temperature Settings | 25℃( Laser Module), 30℃( QBH) |
Cooling Tubes Size(Inner) | Φ25mm |
Cooling Water Flux | >55L/min |
QBH Cooling Water Flux | 2.0L/min |
Product Application
Fiber optic laser machine are suitable for many applications, such as precision machining, 3D printing, metal plates processing, Li battery soldering, etc. Materials can be processed include steels, aluminum based and nickel based alloys, copper, titanium alloy, ceramics and many others.
