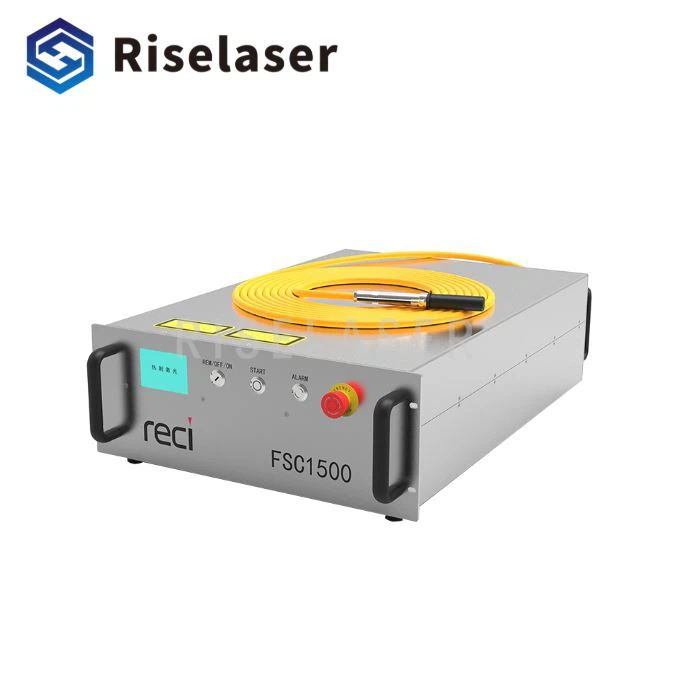

Power Laser Source
Efficient sheet cutting.
Maintenance-free operation.
Wide modulation frequency range.
Output fiber length can be customized.
Description

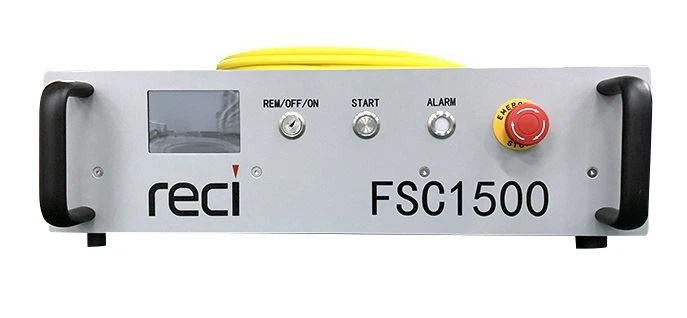

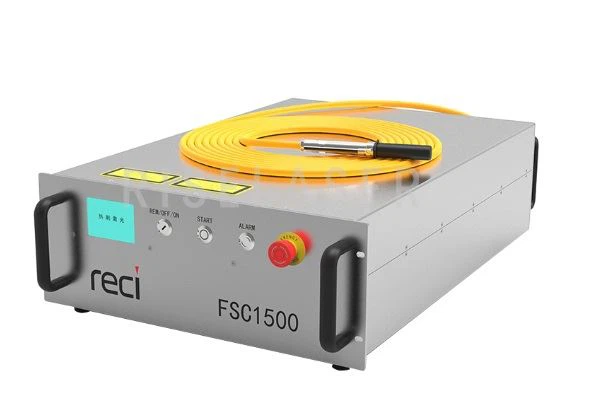

Power Laser Source 1500W
Product Advantage
1.High average power: up to 4000W
2.Good beam quality: M2= =1.3~7
3.The output fiber length is customizable
4.High electro-optic conversion efficiency: >33%
Product Parameters
Model | FSC 1000 | FSC 1500 | FSC 2000 | FSC 3000 | FSC 4000 |
Output Power(W) | 1000 | 1500 | 2000 | 3000 | 4000 |
Central Wavelength(nm) | 1080±3 | ||||
Operation Mode | CW/Modulate | ||||
Max. Modulation Frequence(kHz) | 50 | 20 | |||
Power Instability(%) | <3 | ||||
Red Laser | Yes | ||||
Beam Delivery Optics | QBH | ||||
Output Fiber Diameter(μm) | 20 | 50 | 100 | ||
BPP(mm*mrad) | <0.41 | <1.1 | <3.4 | ||
Output Fiber Diameter(m) | 15(Customizable) | ||||
Operation Voltage(VAC) | 220 | 380 | |||
Power Consumption(W) | 4000 | 6000 | 8000 | 12000 | 16000 |
Control Mode | Ext. RS232 /Ext. AD /Hyper Terminal | ||||
Power Range(%) | 10~100 | ||||
Ambient Temperature(℃) | 5~40 | ||||
Ambient Humidity(%) | <70 | ||||
QBH Cooling Water Temperature(℃) | Room Temperature | ||||
QBH Cooling Water Flow(L/min) | 1.5~2.5 | ||||
Cooling Water Temperature(℃) | 25 | ||||
Cooling Water Flow(L/min) | >12 | >15 | >25 | >30 | >40 |
Dimensions W×H×D(mm3) | 483×117×740 | 483×117×851 | 483×213×830 | 483×258×890 | |
Weight(kg) | <60 | <65 | <80 | <100 | <110 |
Product Overview

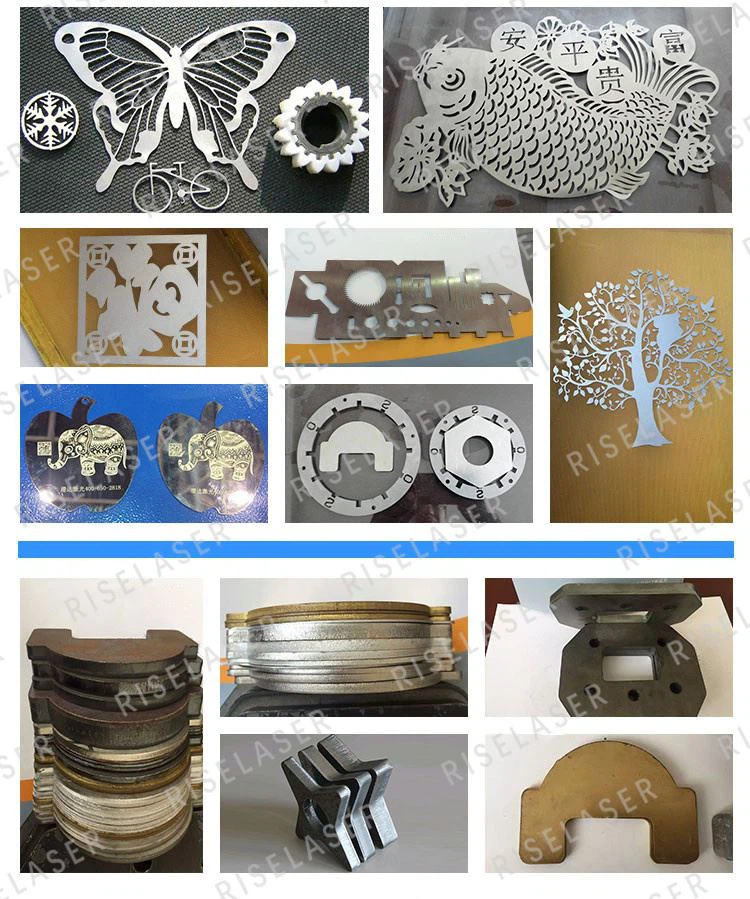

Power Laser Source Cutting Samples
Riselaser Service Features
1) Free Sample Marking.
2) Strict Quality Control of Production.
3) 5-7 Days Quick Delivery.
4) Power Laser Source With 2 Year Quality Guarantee.
5) 12 hours Quick Feedback & After-Sales Service.
